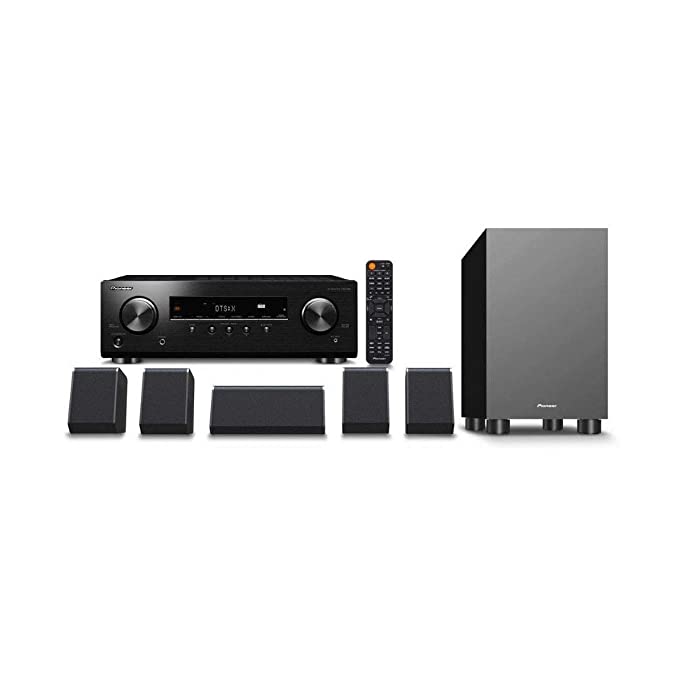

Pioneer HTP-076 Home Theater

Technical Details

• Brand Name
• Pioneer

• Output Wattage
• 150.1 Watts

• Colour Name
• Black

• Special Features

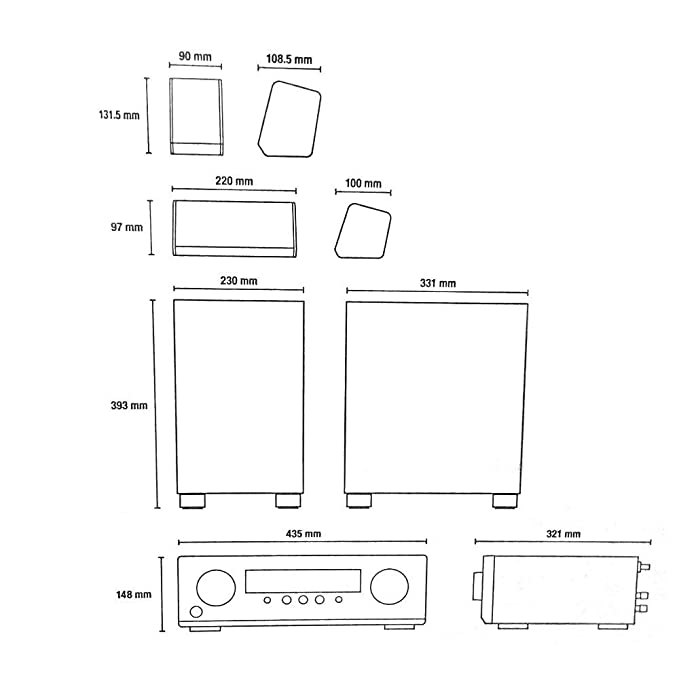

• Power Requirements: AC 220-240 V, 50/60 Hz, Power Consumption/Standby: 465 W/0.2 W, Dimensions (W x H x D): 435 x 148 x 321 mm, Weight: 8 kg, Front Speaker: 90 x 131.5 x 108.5 mm/0.5 kg, Centre Speaker: 220 x 97 x 100 mm/0.6 kg, Surround Speaker: 90 x 131.5 x 108.5 mm/0.5 kg, Subwoofer: 230 x 393 x 331 mm/4.6 kg;, Front Panel: Brushed, Speaker Terminals: 2 large + 4 clip, FL Dimmer: Yes, HDMI Standby Through: Yes with Input Switch / Last Memory, Speaker Impedance: 4 to 16 Ohms, Tone Control: Bass (20 Hz): ±10 dB, Treble (20 kHz): ±10 dB, Dolby Amos, Dolby Surround Upmixer, DTS:X, DTS Neural:X Upmixer, Reflex Optimizer, Dolby Atmos Height Virtualizer, DTS Virtual:X, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express, Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit), HDR10, HLG and BT.2020 Wide Colour Gamut Signal Passthrough; Dolby Vision Compatible, Ultra HD Upscaling (1080p to 4K), 3D Ready (Blu-ray Disc, Broadcast, and Games), Deep Colour (36-bit), “x.v. Colour”, Channels: 6ch (5 + SW), Amplification Type: Direct Energy, 150 W/ch (6 ohms, 1 kHz, 10 % THD, 1ch Driven) x 5ch, 120 W (6 ohms, 100 Hz, 10 % THD) Subwoofer (Passive), 135 W/ch (6 ohms, 1 kHz, 1 % THD, 1ch Driven IEC) x 5ch, 100 W (6 ohms, 100 Hz, 1 % THD IEC) Subwoofer (Passive);, DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch), Digital Quad-Core 32-bit DSP (Cirrus Logic), 384 kHz/32-bit D/A Conversion with AK4438 (AKM), Audio Return Channel (ARC) on HDMI, Phase Control, Advanced Sound Retriever (2ch), Advanced Surround Modes: Classical, Unplugged, Entertainment Show, Drama, Extended Stereo, Extended Mono, Front Stage Surround Advance;, 5.1-CH SPEAKER SYSTEM S-13A: Front: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W); Center: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W); Surround: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W); Subwoofer: 16 cm Cone, Bass-Reflex Type (120 W);, Front Terminals: AUX In, Phones 1 Out; Rear Terminals: HDMI 4 In (4 Assignable), HDMI 1 Out, USB 1 In for Streaming Dongles, Audio 3 In (Assignable), Digital Coaxial 1 In (Assignable), Digital Optical 1 In (Assignable), Subwoofer 2 Pre Out, ZONE B Line Out for Wireless Headphones, Speaker 6 ch (5 + SW) Out, AM Loop Antenna 1 In, FM Unbalanced Antenna 1 In;, Personal Preset, Dialog Enhancement, Bluetooth Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in, User-Friendly GUI with System Setup Menu, On-Screen Information for Audio/Video Status, Auto Power Off in HDMI Standby Through, AM/FM Tuner 40 Presets, Sleep Timer, User-Friendly Simple Remote Control

• Speaker Type
• Satellite

• Product Dimensions
• 53 x 44 x 67 cm; 18.8 Kilograms

• Batteries
• 2 AA batteries required. (included)

• Item model number
• HTP-076-B

• Manufacturer
• Pioneer

• Item Weight
• 18 kg 800 g

• ASIN
• B07QQTKJN5

• Date First Available
• 14 January 2020

• Manufacturer
• Pioneer

• Item Dimensions LxWxH
• 53 x 44 x 67 Centimeters
